Place of Origin:
China
Brand Name:
HWASHI
Certification:
CE/CCC/ISO
Model Number:
WL-TP-AC150K

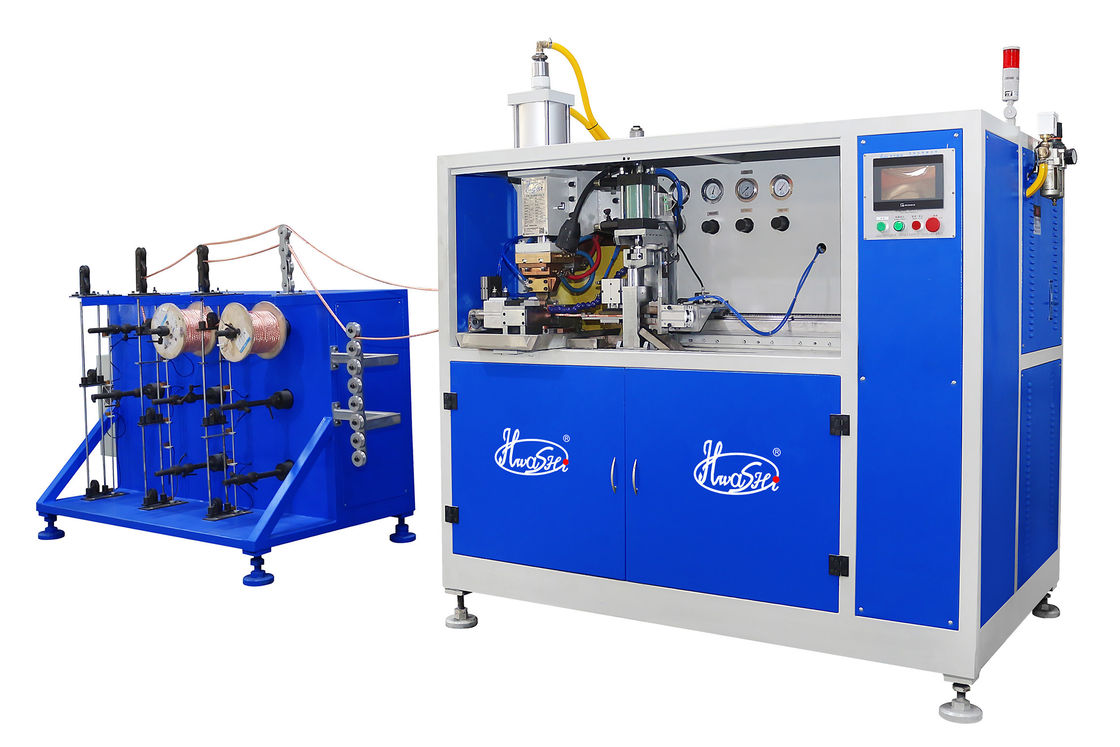

Description Of The Braided Copper Wire Welding Machine
The braided copper wire welding machine is designed to complete the welding and shearing automatically. Once adjusting the related parameters, it can change the shape of welding and length of cutting. The welding length is 60-100mm (adjustable). It can weld 4- 14 wires. The dimension of welding (width and length) is maximum 8x10mm and minimum 4x4.5mm (adjustable).
|
|
1.Feeding systemThrough the feeding system-wire output wheel, the braid wire enters into the welding center to complete the process of feeding wire
|
|
|
2.Welding systemThe welding forming device start working to press the wire on the preset position. The cylinder will press down to complete the welding
|
|
|
3.Cutting device
The stay wire cylinder start to output the wire to preset length. When reaching the preset value, the cutting device starts cutting the wire
|
Features Of The Braided Copper Wire Welding Machine

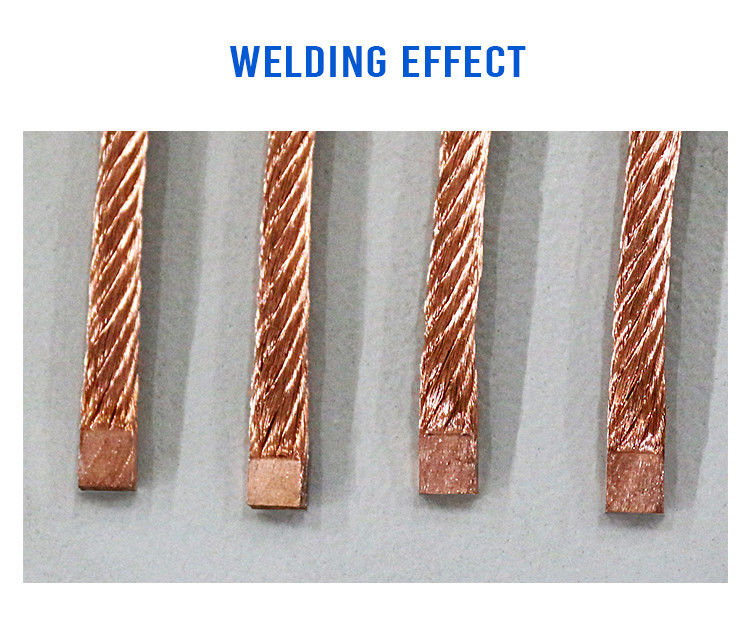

The Welding spots are good in looking, firm, stable and reliable. Well consistency of welding spots. Wide application. The machine, electricity and other mechanism could be reasonably assembled. It could be used to weld other similar products after relevant modification of microcomputer data program. One machine could serve several purposes.
Specification Of The Braided Copper Wire Welding Machine
| No. | Item | Parameters |
| 1 | Welding power | Two-phase AC |
| 2 | Applicable Material | copper |
| 3 | rated power | 50-300k |
| 5 | Duty cycle rate | 50% |
| 7 | Welding Thickness (MM) | 1-8mm |
| 8 | Welding Models | 101kinds |
| 9 | Output way | AC |
| 10 | cutting length | 30-400mm |
| 11 | min forming size | 2*3mm |
| 12 | max forming size | 3*5mm |
| 13 | Lfeeder moving speed | 0.5m/s |

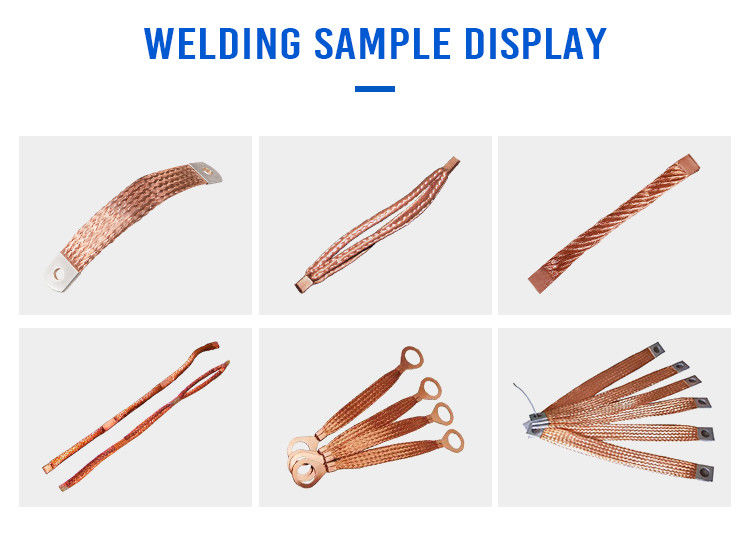

Application and Samples Of The Braided Copper Wire Welding Machine
We can provide customized service for you. Our engineers will discuss the specific welding requirement with you and come out with the suitable technical proposal based on your samples or drawings.
