Place of Origin:
China
Brand Name:
HWASHI
Certification:
CE/CCC/ISO
Model Number:
WL-CJ-2K

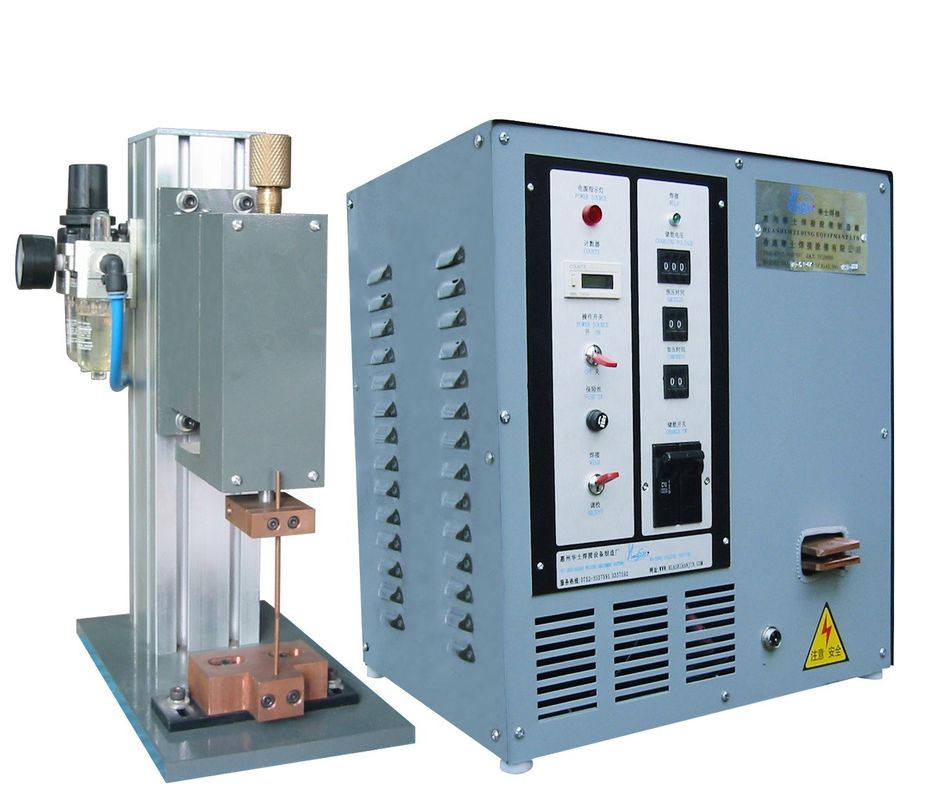

Description Of Precision Micro Spot Welder
Precision micro spot welder uses capacitor to store energy and to release instantaneous current. In the meantime, it concentrates large current to pass through a small point and then achieves welding effect (welding process passes through thousands of ampere current within 1/1000 second of time). Therefore, it can minimize the situation that the work piece being oxidized or mechanically deformed due to overheat during the process of welding. The output of the capacitor discharge spot welder that we produce is from 100WS to 18000WS. It is especially suitable for welding metals like red copper, bronze, brass, aluminum, silver and stainless steel, etc. Thus, this type of machine is widely applied to various kinds of industrial production and manufacturing.
Features Of Precision Micro Spot Welder
1. Effectively restrain the occurrence of welding spatter;
2. High working accuracy;
3. High degree of steel structure;
4. Low pressure of welding;
5. Stepless adjustment of electrode pressure range;
6. Stepless adjustment of electrode pressure stroke;
7. Flexible collocation of welding head. Indirect single-point, indirect double-point and direct single-point or direct double-point is all available.
Application Area And Samples Of Precision Micro Spot Welder
Welding of silver contact of low voltage appliances, welding of mini precise work pieces like crystal valve of chip, etc.
Technical Parameters Of Precision Micro Spot Welder
Micro Precision Type Capacitor Spot Welding Machine
| Model | Welding Spot Manner | Input Voltage |
Input Power |
Capacitance | Output Heat | Welding Capability | Dimensions |
| Single / Double | V | KW | μF | J | mm×Pieces | W*D*H (mm) | |
| WL-CJ-0.5K | Direct single-point | 220/1 | 0.5 | 2000 | 180 | 0.4×2 | 500*400*300 |
| WL-CJD-0.5K | Indirect double-point | 220/1 | 0.5 | 2000 | 180 | 0.4×2 | 500*400*300 |
| WL-CJ-1K | Direct single-point | 220/1 | 1 | 3000 | 380 | 0.5×2 | 500*400*300 |
| WL-CJD-1K | Indirect double-point | 220/1 | 1 | 2000 | 180 | 0.5×2 | 600*450*300 |
| WL-CJ-2K | Direct single-point | 220/1 | 1 | 4500 | 500 | 1.0×2 | 380*650*450 |
